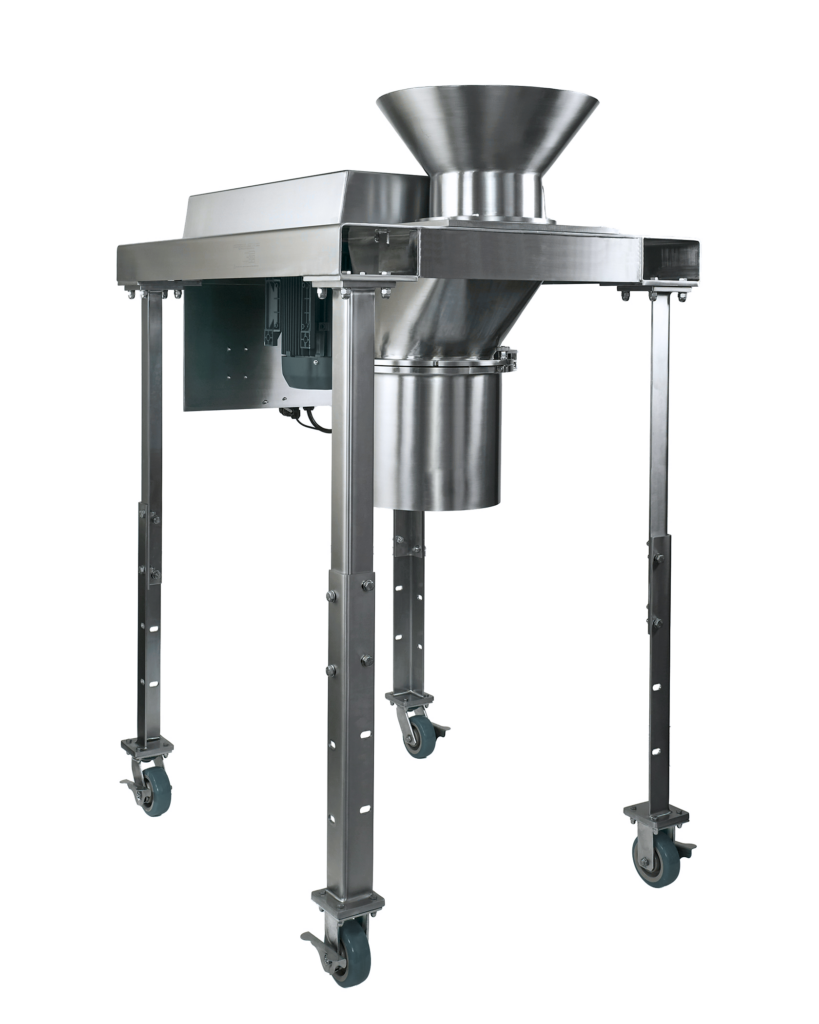

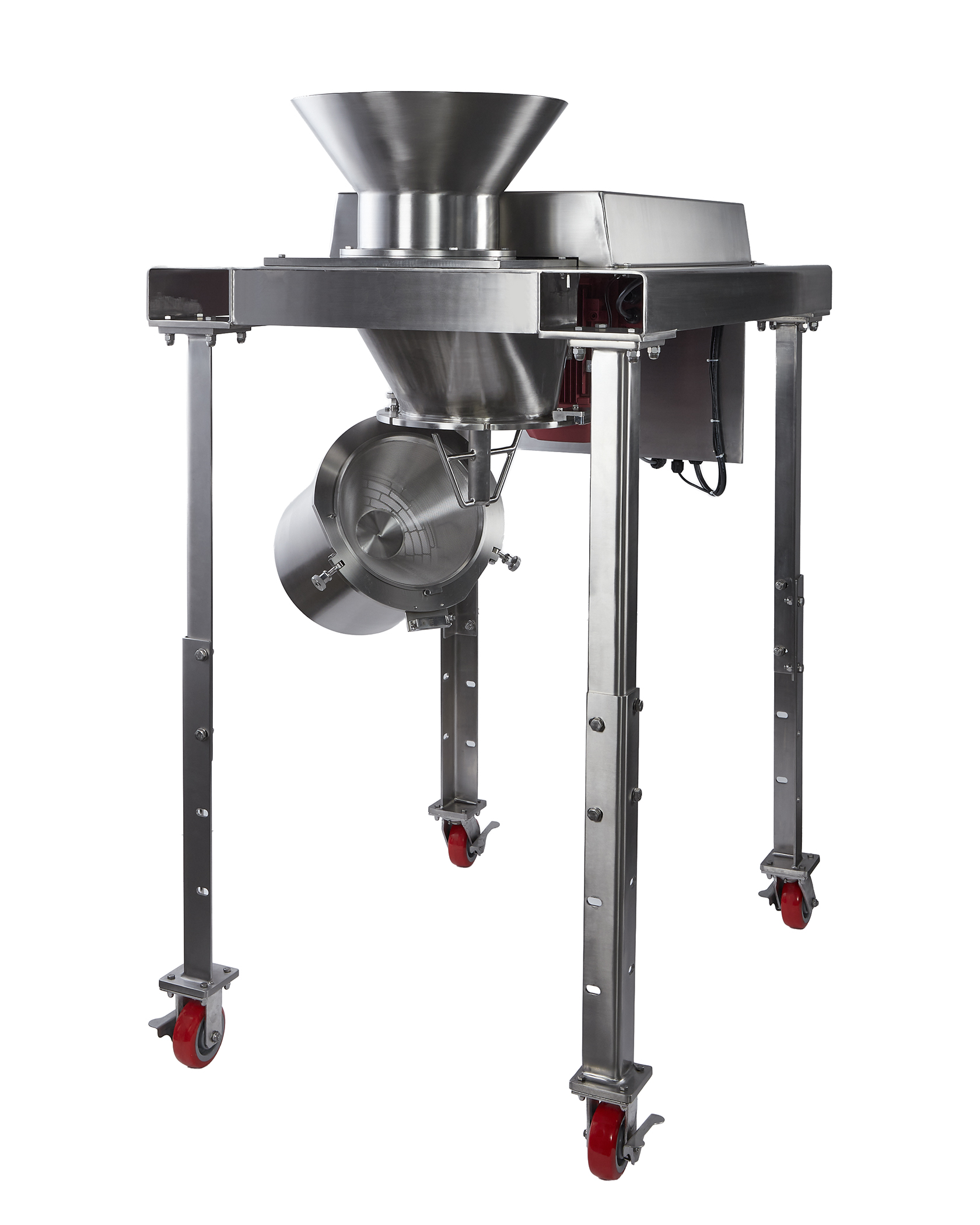

Designed for flexibility, the G96 easily adapts to different materials, production capacities, and installation requirements. Whether processing powders, reclaiming valuable products, reducing particle size, or breaking down agglomerates, the G96 provides reliable, repeatable performance with uncompromised operator safety.
Applications
The G96 Food Mill is suitable for a wide range of food and nutraceutical processing applications, including:
- Food ingredient milling
- Nutraceutical ingredient milling
- Particle size reduction
- Powder reclaim
- Deagglomeration
- Delumping
- Chocolate and confectionery reclaim
- Dried fruit separation
- Processing of heat- and oil-sensitive ingredients
Key Benefits
Gentle product handling
The conical milling principle provides efficient size reduction while minimizing heat generation and mechanical stress, helping preserve the quality, flavour, texture and functionality of sensitive food ingredients.
Flexible process configuration

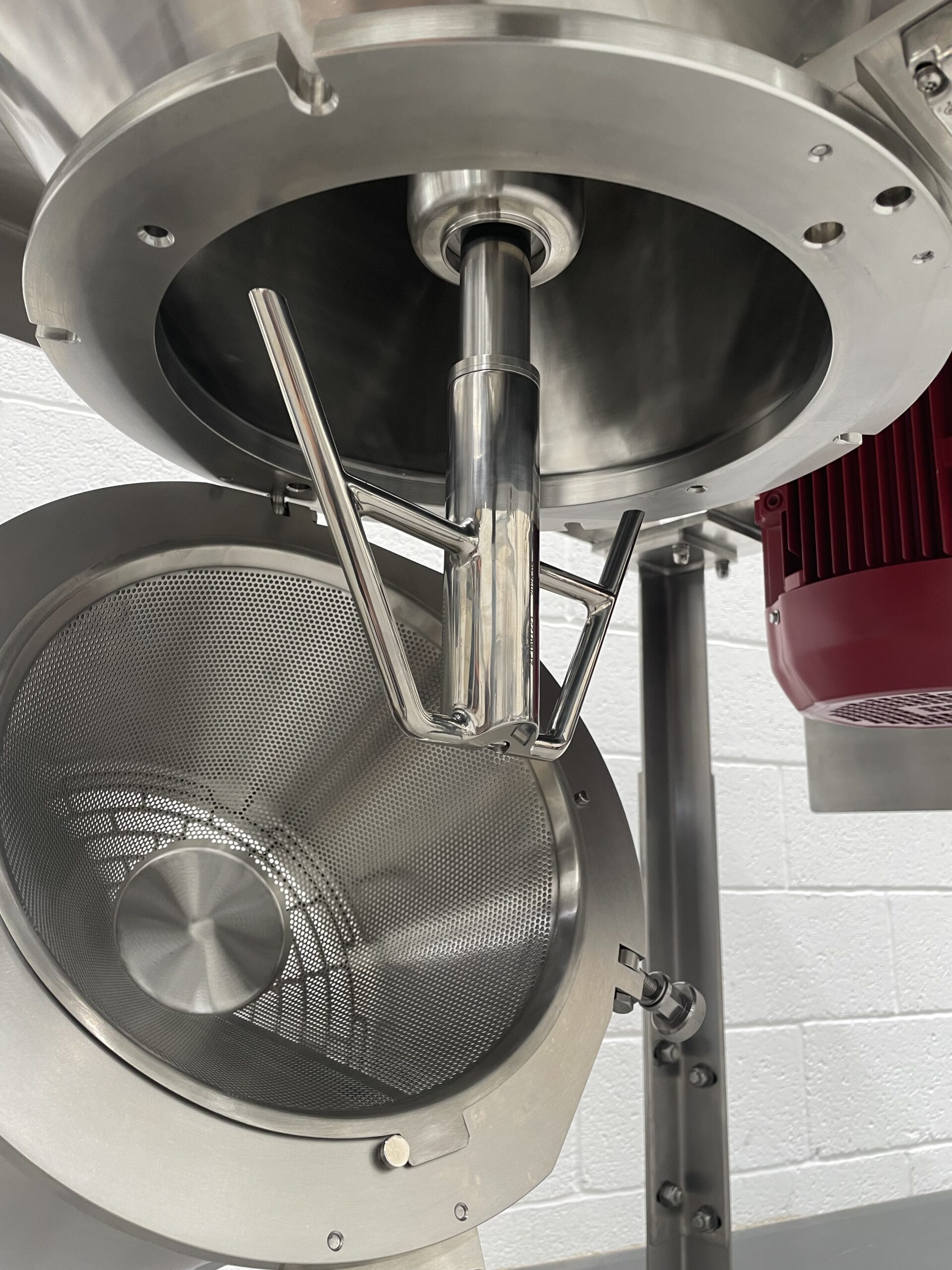

Available with multiple screen and impeller configurations, the G96 can be tailored to achieve the required particle size distribution across a wide variety of products and production requirements.
Hygienic design
Manufactured from stainless steel with FDA-compliant product contact components, the G96 features an easy-to-clean design that minimizes downtime and supports hygienic food production.
Operator safety
Integrated safety grids, interlocked discharge shrouds and optional emergency stop controls help protect operators while supporting compliance with modern safety standards.
Reliable performance
Built on decades of proven Comil® technology, the G96 delivers consistent milling performance backed by expert engineering support, fast commissioning and responsive after-sales service.
Features
- Proven Comil® conical milling technology
- Gentle milling of heat- and oil-sensitive ingredients
- Multiple screen options for controlled particle size distribution
- Easy-clean, low-maintenance construction
- Flexible installation options
- Stainless steel hygienic design
- FDA-compliant spindle seals
- Integrated operator safety features

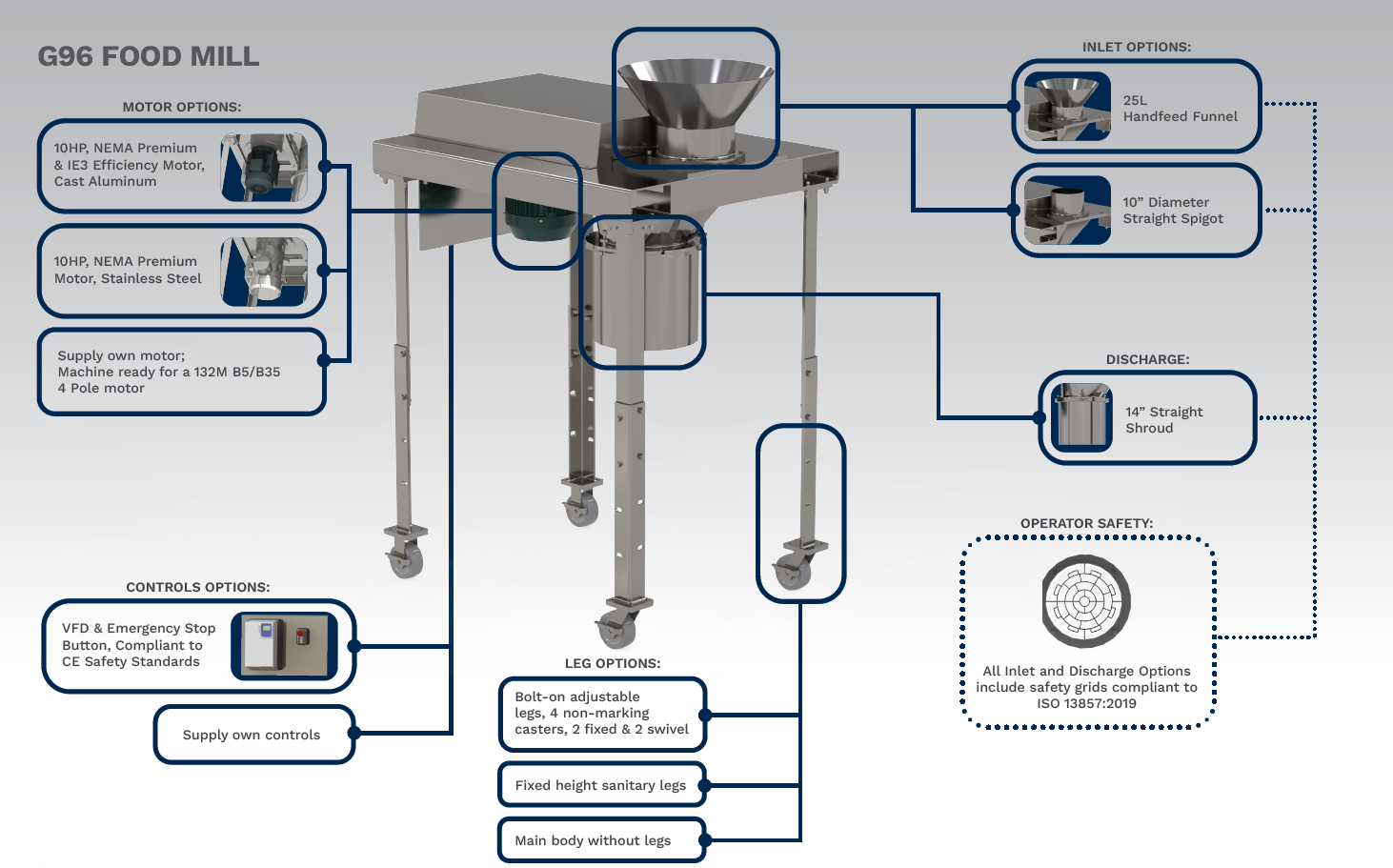

- Available with various motor and configuration options
Typical Applications
The G96 Food Mill is commonly used for processing:
- Food powders
- Nutraceutical ingredients
- Chocolate and confectionery products
- Cookies and baked products for reclaim
- Dried fruits
- Bulk ingredients requiring deagglomeration
- Powder blends requiring controlled particle size reduction

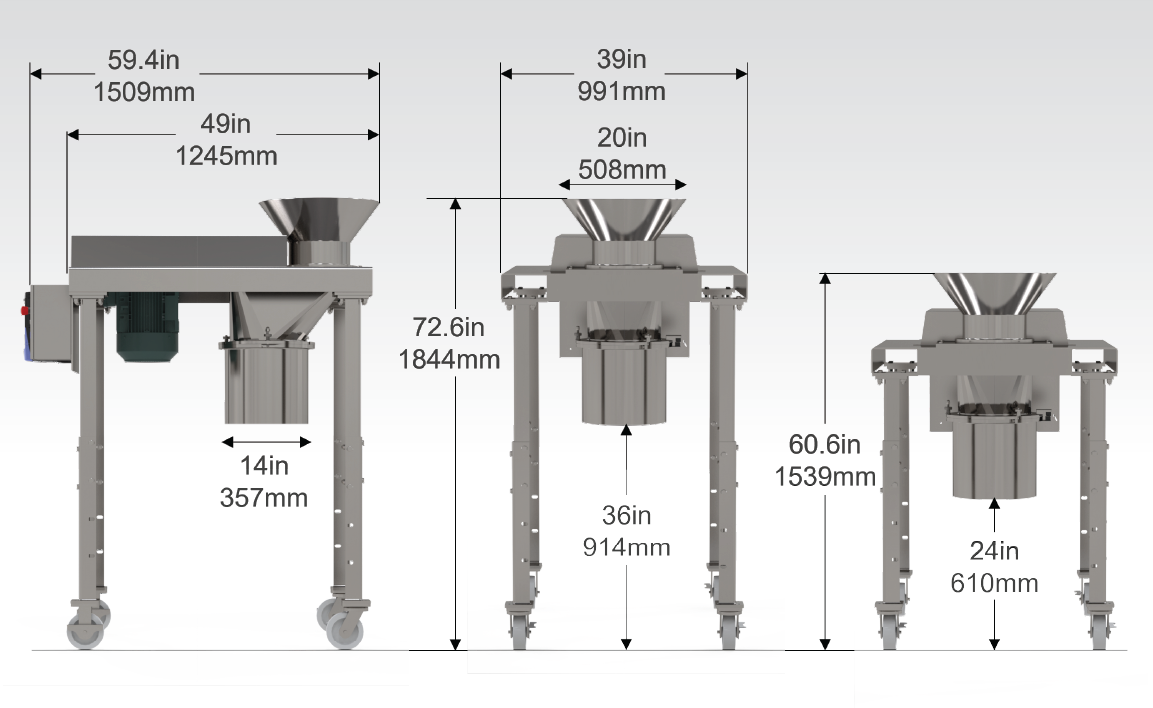

Technical Specifications
| Parameter | Specification |
|---|---|
| Speed Range | 450–1800 RPM |
| Product Contact Material | 316L Stainless Steel |
| Non-contact Material | 304 Stainless Steel |
| Surface Finish | 150 Grit (1 μm Ra) |
| Seals | FDA-compliant spindle seals |
| Motor Power | 10 HP |
| Power Supply | 400 V / 50 Hz or 230/460 V / 60 Hz |
Brochure:
More information on manufacturer`s website:
| Brand | Comil SDx -series |
|---|---|
